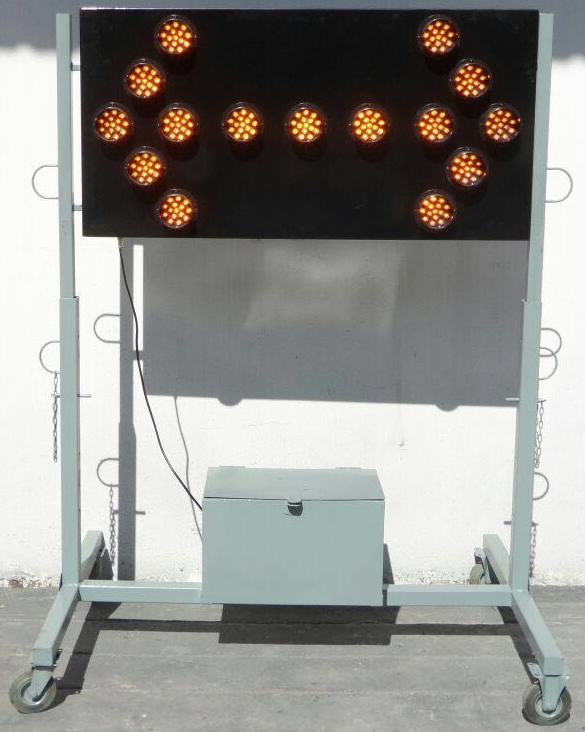

Directional Display Board and Warning Double Arrow Guiding Board Panel

- Frame: plastic panel integrated type

- Size: 900 x 450 x 50mm

- LED quantity: 80pcs Super Bright amber colour LED diameter 10mm (28+24+28 pcs)

- IV: 12,000 - 15,000mCD/m2.VF.2.0-2.2

- Voltage: car battery - DC12V

- Electric current: <3A, <36W. VLD 589-592 Nm

- Flash frequency (times/min): up to 60-100

- Warning distance: up to 800m

- Cover material: aluminium frame

- Wires: 1 meter connected in the panel

- Operating mode: 3 swifts with 3 versions - to left, to right and left & right

- Optional part: stand can be made according to customer’s requirement
